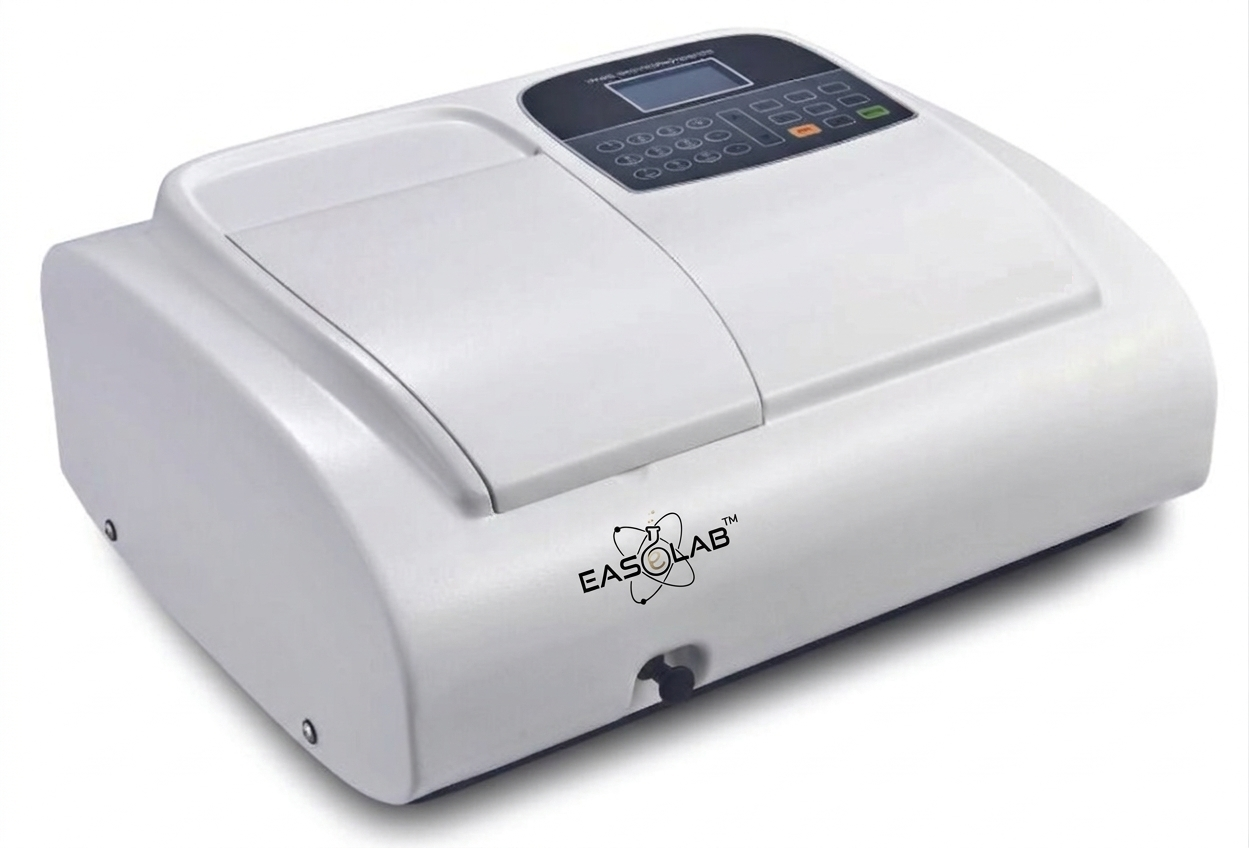

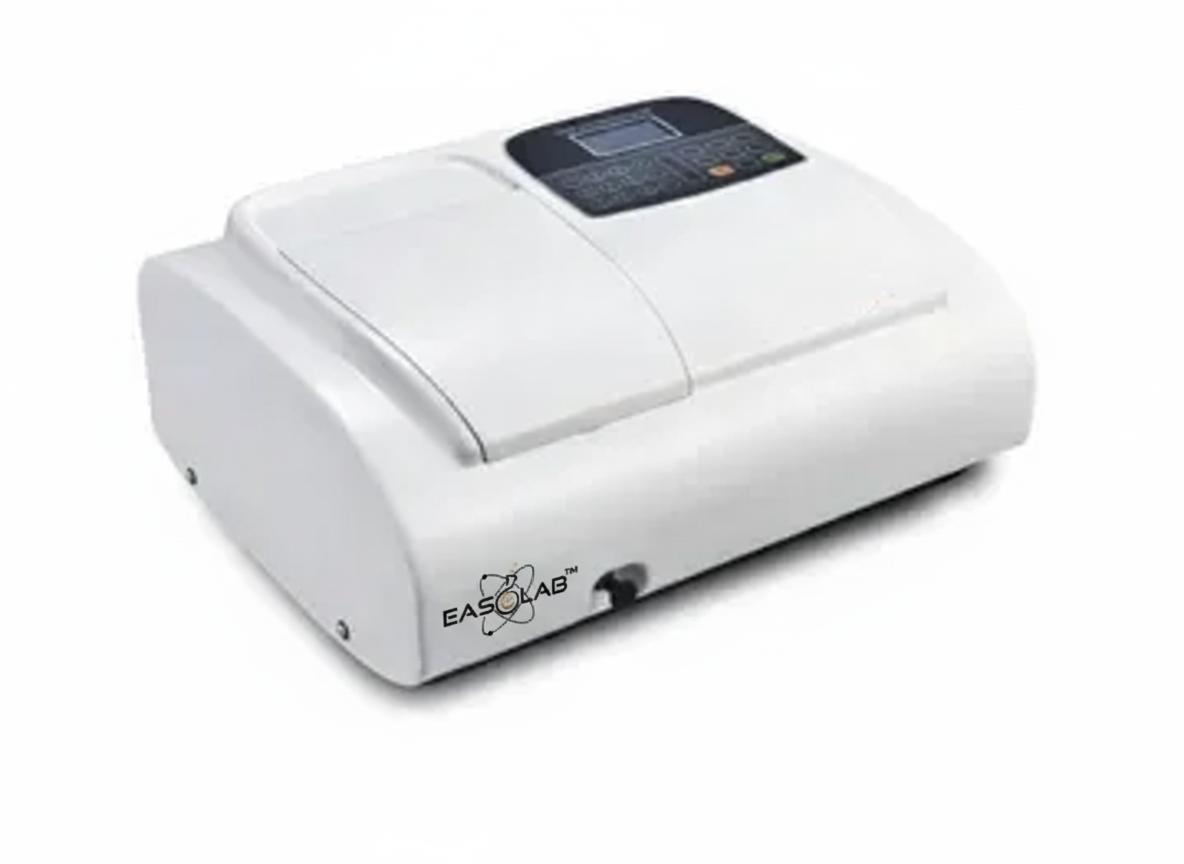

UV –Vis. SINGLE BEAM SPECTROPHOTOMETER
₹185,260.00
A UV-Vis single-beam spectrophotometer is an analytical instrument that measures a substance’s light absorption in the ultraviolet and visible wavelength ranges to determine its concentration, purity, and chemical characteristics. It is commonly used for routine laboratory work, quality control, and teaching environments due to its simple operation and cost-effectiveness.
Description
Model:- ELSBS-001
Silent Feature:-
NUMERICAL KEYS
Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.
8MM THICK OPTICAL BASE
The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
STANDARD CURVE
Can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions
AUTO SETTING WAVELENGTH
Users set wavelength automatically through arrow keys to avoid operation errors.
DATA OUTPUT
LMSPUV1200 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and
multi wavelength testing results on the screen through the software.
IMPORTED HIGH QUALITY DEUTERIUM LAMP
This instrument uses imported flanged deuterium lamp with low stray light, photometric accuracy and easy replacing
Data can be restored after a sudden Power cut.
Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life.
Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders.
| Make | EASELAB |
| Wavelength Range | 190-1100nm |
| Bandwidth | 2nm |
| Optical System | Single Beam, Grating 1200 lines / mm |
| Wavelength Accuracy | ±0.8nm |
| Wavelength Repeatability | ± 0.2nm |
| Wavelength Setting | Automatic |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | ± 0.2%T |
| Photometric Range | -0.3-3A,0-200%T |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.002A/h |
| Stray Light | ≤ 0.05 % T |
| Data Output | USB |
| Printer Port | Parallel Port |
| Display | LCD |
| Cell Holder | 10 mm 4 position cuvette holder |
| Light Source | D2 Lamp & Tungsten Halogen Lamp ( W Lamp ) |
| Detector Silicon | Photodiode |
| Power Supply | AC 220V,50/60Hz |
| Packing Dimension (LxWxH) | 640x 550 x 400mm |
| Gross Weight | 24 kg |
Optional Accessories
Peltier / Sipper System
Multi cell Holder (Upto 100mm)
STANDARD ACCESSORIES : Main Instrument,10 mm Glass Cuvette – 4 pcs. 10 mm Quartz Cuvette – 2 pcs., Dongle, Pen drive, Power Cable, Dust Cover, Instruction Manual, Test Certificate.
