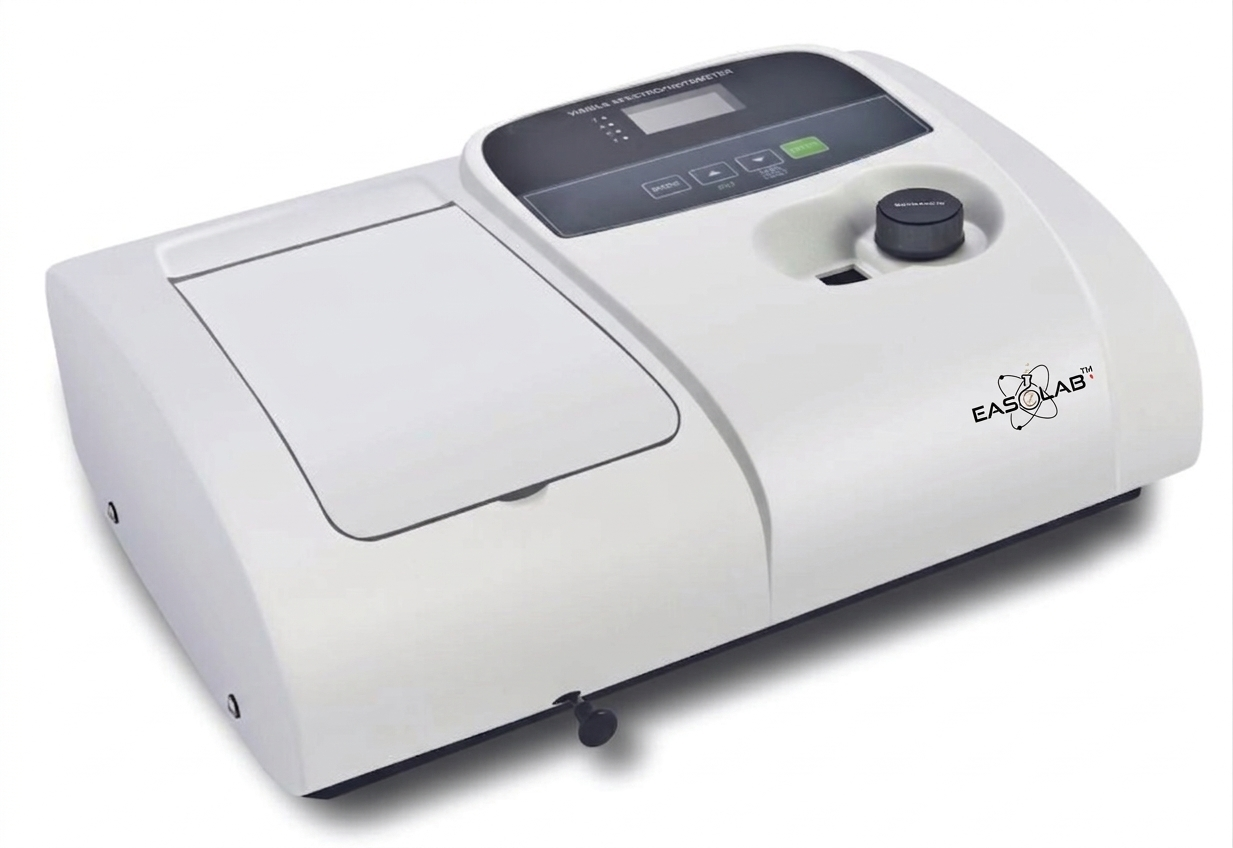

Visible Spectrometer
₹53,500.00
A Visible Spectrometer (or Spectrophotometer) is an analytical device measuring how much visible light a sample absorbs or transmits, allowing scientists to identify, quantify, and study substances by analyzing their color or interaction with light, crucial in chemistry, biology, and material science for tasks like concentration measurement and impurity detection.
Description
Model:- ELVS-001
Features:-
Microprocessor Controlled:-Microprocessor controlled, ELVS-001 can realize auto Zero and auto 100% T adjustment with one push-button. ELVS-001 has a LCD display for direct readout of Transmittance, Absorption, and Concentration.
Grating Monochromator:-ELVS-001 uses 1200 line grating which ensures high resolution, low stray light and parameters accuracy.
Data Output:-ELVS-001 is equipped with USB port which can be connected to PC to edit data through specific software (Optional), Data can also be printed through a parallel port connected to a printer.
Compact Design:-The compact design of ELVS-001 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.
Display Mode:-ELVS-001 can display absorption, transmittance, concentration and coefficient directly by different mode switching. Large sample compartment, it can accommodate 5-100 mm path length cuvettes with optional holders
SPECIFICATIONS
| Make | EASELAB |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 325-1000 nm |
| Spectral Bandwidth | 4 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ±1 nm |
| Wavelength | Setting Manual |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ±0.3%T |
| Photometric Range | -0.3 – 3A, 0-200%T |
| Photometric Mode | T.A.C.F |
| Stray Light | ≤0.3%T |
| Stability | ± 0.002A/h |
| Display | LCD |
| Detector & Light Source | Silicon Photodiode & Tungsten Halogen Lamp |
| Output | USB Port & Parallel Port(Printer) |
| Power Supply | AC 220 V,50/60 Hz |
STANDARD ACCESSORIES : Main Instrument, 10 mm Glass Cuvette – 4 pcs. Pen drive, Power Cable, Dust Cover, Instruction Manual, Test Certificate
