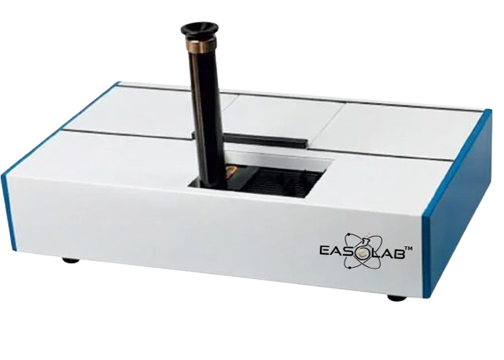

Visual Colorimeter
₹116,230.00
A visual colorimeter is a simple instrument that helps humans visually compare the color of a sample (like a liquid or solid) against known color standards (often glass filters) to quantify its color, typically using international scales (Red, Yellow, Blue), for quality control in industries like food, pharma, and oils, offering a quick, cost-effective way to assess color changes. It uses a light source and comparison boxes to create a split view, allowing an operator to match the sample’s color by inserting standard filters until a match is found.
1 in stock
Description
Model: ELVC-001
Silent Feature:-
- Measuring principle visual, in terms of international colour scale units
- Visual measurement of colour matching to determine material colour
- Design in conformity with internationally accepted colour scale unit
- Simple structure and easy to operate
- Replaceable sample chamber liner
- Replaceable light source, two spares Incandescent lamps.
- Viewing system fully adjustable
Visual Colorimeter is a kind of Visual colour measuring Instrument. It measures colour scale unit which is an International acknowledged specific colour method, as a standard to measure the colority of liquid, gelatin, solid and powder samples.
This instrument has the features of simple structure and convenient operation and often used in the colour measurements of different material of grease, Paint, Plastic, Jam, Textile fabric, foodstuff, liquid chemicals, and Pharmaceuticals.
| Measuring principal | Visual, in terms of International colour scale units |
| Modes | Transmittance, reflectance |
| Measurement ranges | 0.1 – 79.9 Red, 0.1 – 79.9 Yellow, 0.1 – 49.9 Blue, 0.1 – 3.9 Neutral |
| Resolution | 0.1 colour scale unit |
| Viewing system | Fully adjustable |
| Light Source | Incandescent lamp |
| Illuminant | Approximates to daylight |
| Path Length | Up to 180 mm |
| Diffuse reflectivity of White plate | > 80% |
| Amplification of the magnifiers | 1.9 X |
| Dimension of Colorimetric Cuvette | 10x20x40mm, 25.4x20x40mm, 133.4x20x40mm |
| Power Supply | AC 220V,50/60Hz |
| Packing Dimension (LxWxH) | 620 x 450 x 310mm |
| Gross Weight | 10kg |
STANDARD ACCESSORIES: Main Instrument, Cuvette lamp, Lens Tube, Power Cable, Instruction Manual,Test Certificate
